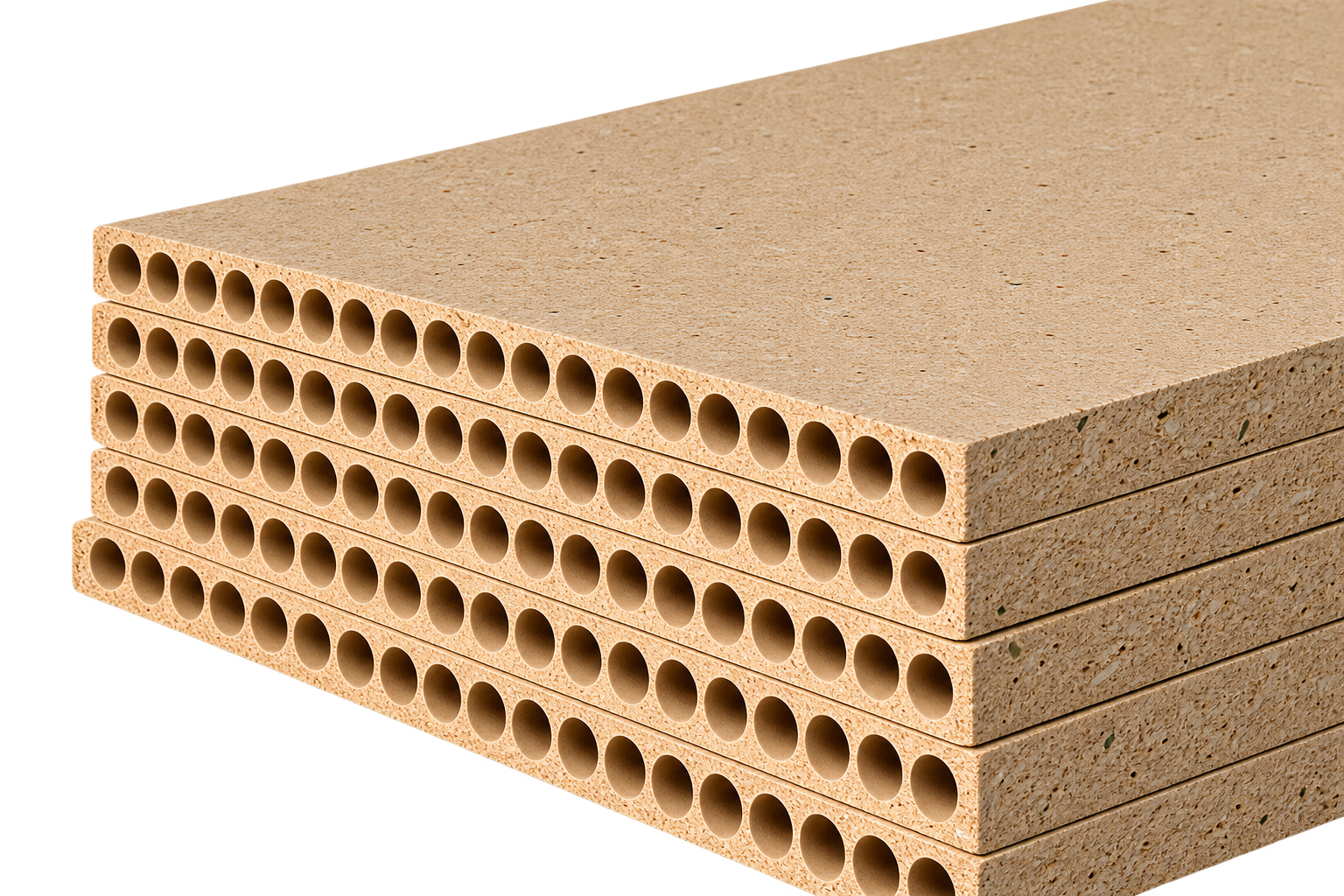

Hollow channels reduce the amount of core material.
HollowDoor Core
33 / 38 mmReference thicknesses
1180 × 2090Reference panel size · mm
TubularHollow channels
InteriorLightweight doors
01 / The material
Less weight. A useful door core.
A lighter door-core panel made with hollow channels inside. The tubular design reduces the amount of material used while keeping a board shape.
It is intended for interior door manufacturing where a lighter core is preferred. The whole door, including its frame and faces, must suit the project.
Tubular channels
Lower weight
Interior doors
02 / Product qualities
The earlier catalogue describes circular channels inside.
Reference sizes include 33 mm and 38 mm.
Used with suitable door facing panels and edge framing.
03 / Interior use
Designed for lighter interior doors.
Use this core with appropriate facing sheets and a strong perimeter frame. The hardware and completed door determine the final performance.
Lightweight doors
Suitable door facings
Perimeter framing
04 / Technical data
Tubular core reference.
| Property | Unit | Value |
|---|---|---|
| Core type | — | Tubular particleboard |
| Reference thickness | mm | 33 / 38 |
| Reference width | mm | 1180 |
| Reference length | mm | 2090 |
| Core density range | kg/m³ | 320–360 |
| Approx. core weight | kg/m² | 11–13 |
| Typical channel diameter | mm | 18 / 22 |
| Channel spacing | mm | ≈ 28 |
05 / Formats
Reference panel sizes.
01
1180 × 2090mm
33 mm
02
1180 × 2090mm
38 mm
Tubular particleboard
06 / Material
How it is built.
Core typeTubular particleboard
Internal shapeCircular hollow channels
Intended useLightweight interior doors
07 / Handling
Handling and assembly.
- Keep panels flat and dry before installation.
- Use suitable door facings and a perimeter frame.
- Use dust extraction during machining.
